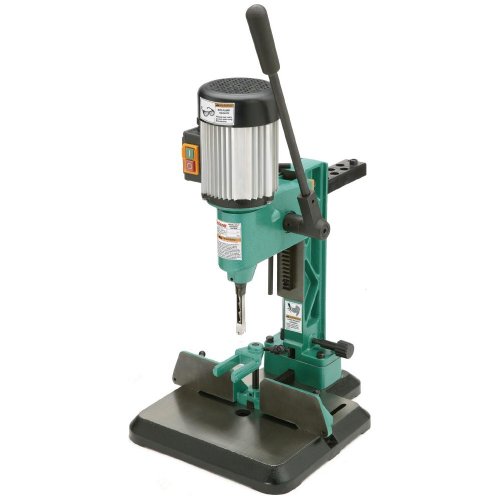

Grizzly G0645 1/2 HP Bench-Top Mortising Machine

Reviews of Grizzly G0645 1/2 HP Bench-Top Mortising Machine

1.) EZ Mortising at last
Reviewed by: Astrapilot Bloomington Ind
Rating:
A well made and intuitive machine to use. I was able to put it together and start using it within thirty min. Im very happy with this purchase

Features of Grizzly G0645 1/2 HP Bench-Top Mortising Machine

Drill square sided mortises with this Benchtop Mortising Machine. Rigid cast iron construction and a rack and pinion head control mechanism slides on a dovetailed column with adjustable ways to ensure precision mortises every time. A pneumatic return strut eases the step and repeat cycle of multiple drilling. An extension block is also included to increase the maximum stock thickness to 6". The 1/2 HP motor powers through any wood and the easy access drill chuck makes changing mortising drills a snap. Includes 4 mortising chisels! Specifications: Motor: 1/2 HP, 110V, single-phase Amps: 6 Speed: 1750 RPM Spindle taper: JT#2 Spindle travel: 3-1/4" Chuck size: 3/8" Collar size: 5/8" Number of speeds: 1 Maximum stock width: 8-1/2" Maximum stock thickness without extension block: 4-1/4" Maximum stock thickness with extension block: 6" Maximum mortising depth: 3" Maximum chisel travel: 4-5/8" Maximum distance column to chisel: 5" Chisel size range: 1/4" - 1/2" Table size: 12-1/2" x 12-1/4" Overall height: 32" Approx. shipping wt.: 76 lbs. Features: Tool storage rack on back of column Includes four chisels Dovetailed column and head Includes 1-3/4" riser block for increased
